Description
STN V3 YB300R 285.8cc Gasoline Dirt Bike is published from the supplied STN catalog and the matching model-specific image set. FCDC Motor uses this FCDC listing for sample, dealer and wholesale product comparison.

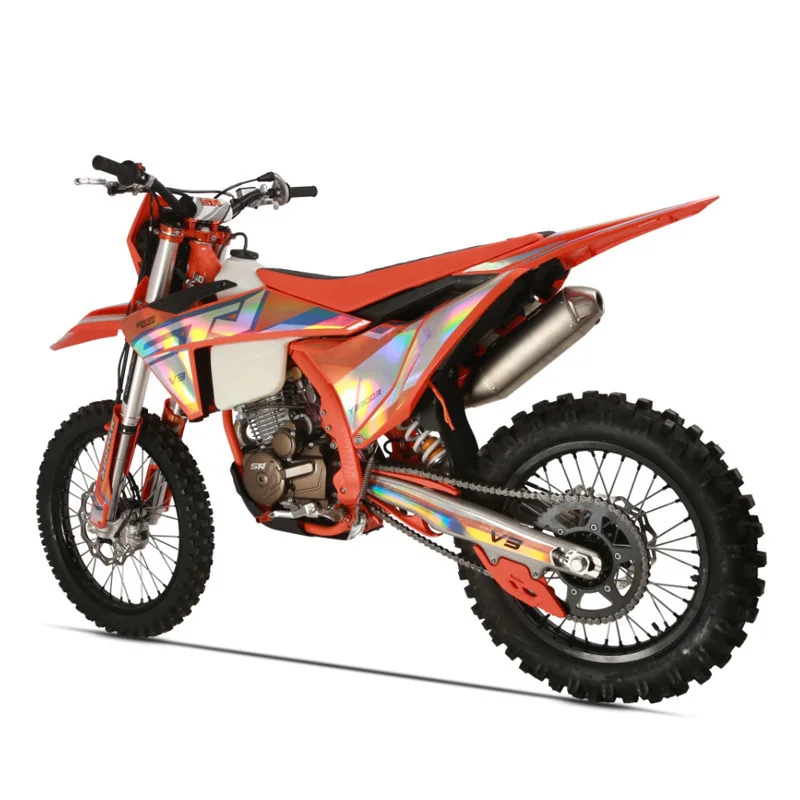

STN V3 YB300R overview
The V3 uses the 285.8 cc air-cooled YB300R in the full-size 2,210 mm STN chassis with a 920 mm seat height.
It is a straightforward full-size trail and recreational off-road option for dealers who prefer a five-speed air-cooled platform.
Verified technical specifications

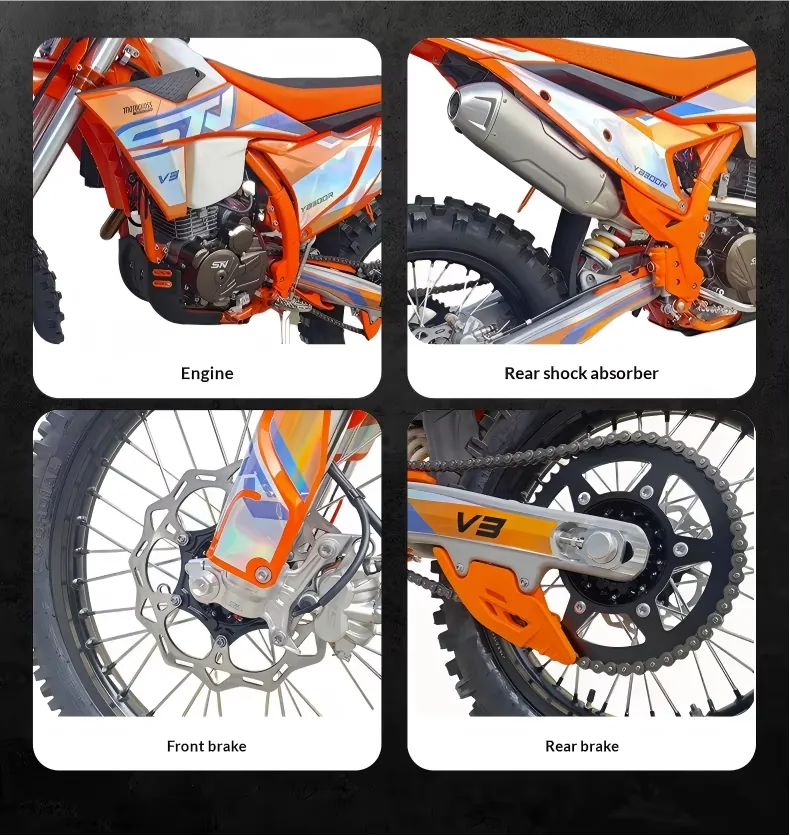

| Engine | LONCIN YB300R, single-cylinder, four-stroke, air-cooled |
|---|---|
| Displacement | 285.8 cc |
| Maximum power | 18 kW at 8,000 rpm |
| Maximum torque | 23 N.m at 6,000 rpm |
| Transmission | Manual five-speed, wet multi-plate clutch |
| Fuel delivery | Carburetor |
| Starting | Electric start |
| Final drive | Chain |
| Dimensions | 2,210 x 820 x 1,260 mm |
| Seat height | 920 mm |
| Ground clearance | 300 mm |
| Wheelbase | 1,500 mm |
| Tires | Front 90/100-21; rear 120/90-18 off-road tire |
| Rims | Front 1.6 x 21; rear 2.15 x 18 |

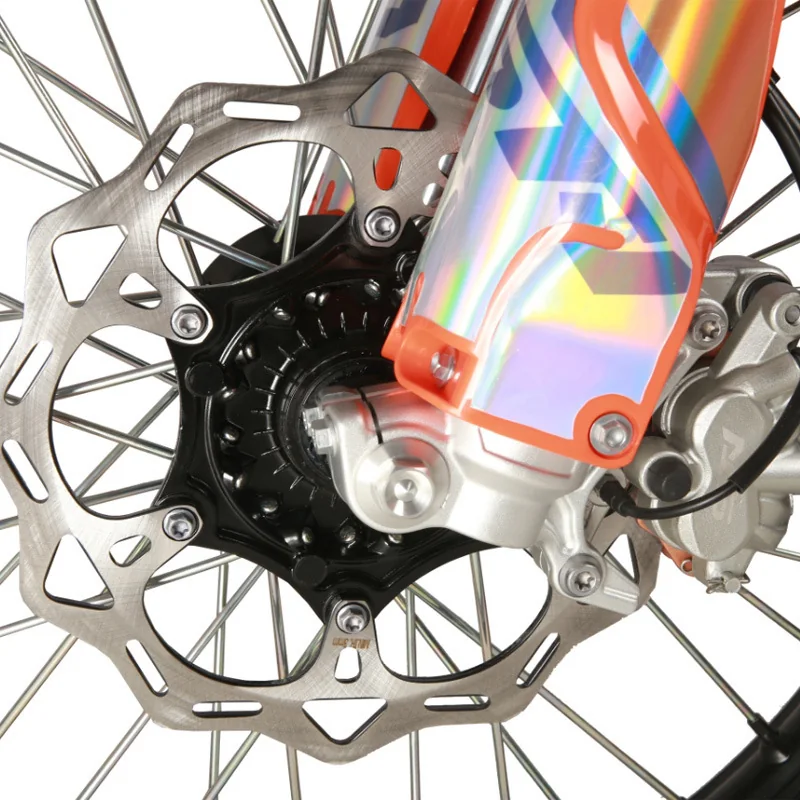

| Brakes | Front and rear disc brakes |
| Suspension | CNC-adjustable front fork; hydraulic rear shock with central airbag |
| Fuel tank | 8.8 L |
| Net weight | 110 kg |
Source: supplied STN model catalog, page 4. The source itself states that final production vehicles may differ; confirm the exact order configuration in writing.
Catalog price and quotation context
The supplied STN source catalog lists a retail guidance price of US$2,615. This is not a live FCDC Motor FOB, freight or landed-cost quotation. Confirm the current configuration, quantity, destination, packing, spare parts and commercial terms before ordering.
How to compare this STN model
The published V3 and H3 powertrain and main dimensions are the same, so buyers should compare bodywork, dated photos, trim and parts fit instead of assuming a performance difference.
Review the dedicated STN V3 YB300R product introduction, browse the gasoline dirt bike category, or use the quotation form to confirm current supply.
Request a current STN V3 YB300R quote
Send FCDC Motor the model, quantity, destination, intended use, preferred packing and spare-parts list. The team will verify the exact motorcycle before confirming price, freight or documents.
