Description
STN G5 YB300H 285.8cc Gasoline Dirt Bike is published from the supplied STN catalog and the matching model-specific image set. FCDC Motor uses this FCDC listing for sample, dealer and wholesale product comparison.
STN G5 YB300H overview
The red G5 pairs the 285.8 cc YB300H with six speeds, full-size geometry and a listed 111.5 kg weight.
It gives dealers a lighter air-cooled alternative between compact PR300 models and the 117-122 kg water-cooled products.
Verified technical specifications

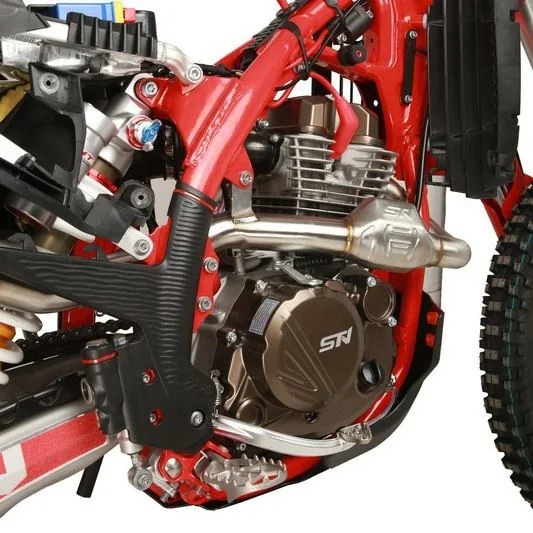

| Engine | LONCIN YB300H, single-cylinder, four-stroke, air-cooled |
|---|---|
| Displacement | 285.8 cc |
| Maximum power | 18 kW at 8,000 rpm |
| Maximum torque | 23 N.m at 6,000 rpm |
| Transmission | Manual six-speed, wet multi-plate clutch |
| Fuel delivery | Carburetor |
| Starting | Electric start |
| Final drive | Chain |
| Dimensions | 2,210 x 820 x 1,260 mm |
| Seat height | 920 mm |
| Ground clearance | 300 mm |
| Wheelbase | 1,500 mm |
| Tires | Front 90/100-21; rear 120/90-18 off-road tire |
| Rims | Front 1.6 x 21; rear 2.15 x 18 |
| Brakes | Front and rear disc brakes |
| Suspension | CNC-adjustable front fork; hydraulic rear shock with central airbag |
| Fuel tank | 8.8 L |
| Net weight | 111.5 kg |
Source: supplied STN model catalog, page 18. The source itself states that final production vehicles may differ; confirm the exact order configuration in writing.
Catalog price and quotation context
The supplied STN source catalog lists a retail guidance price of US$2,675. This is not a live FCDC Motor FOB, freight or landed-cost quotation. Confirm the current configuration, quantity, destination, packing, spare parts and commercial terms before ordering.
How to compare this STN model
G5 and H5 share the published mechanical specification. Use the separate image sets to verify bodywork and color before ordering parts or preparing listings.
Review the dedicated STN G5 YB300H product introduction, browse the gasoline dirt bike category, or use the quotation form to confirm current supply.
Request a current STN G5 YB300H quote
Send FCDC Motor the model, quantity, destination, intended use, preferred packing and spare-parts list. The team will verify the exact motorcycle before confirming price, freight or documents.
